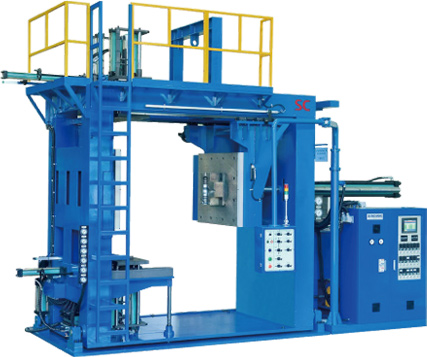

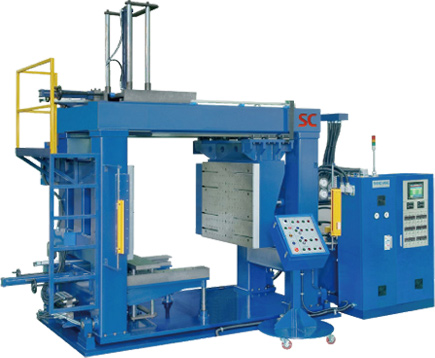

Home Machinery part EPOXY COMPRESSION MOLDING M/C

This machine to produce electric insulation switch and instrument transformer by molding liquid EPOXY at high temperature and high pressure
This macine is manufactured to minimize bubbles occur during molding by tilting the whole machine
The position control of each working cylinder can be precisely controlled by using linear scale
This macine is manufactured to minimize product defects by individually controlling the core pressure of upper and lower
This macine is manufactured for energy saving and precision operation by hydraulic hybrid control (optional)
Be capable of reducing setting times of operating conditions of same items by storaging operating conditions (20set) by touch screen monitor and prompt remedy to the breakdowns and operation is possible by preserving messages(195items) for the operations and defects.
Efficient production management is possible by computer communication because of the receiving data at the computer room with real time (option)

Item		SC-APG10	SC-APG15	SC-APG18	SC-APG25	SC-APG30	SC-APG45
Clamping force	ton	10	15	18	25	30	45
Clamping system		Simple RAM	Simple RAM	Simple RAM	Simple RAM	Simple RAM	Simple RAM
Heating plate size	mm	500×500	600×600	800×600	1000×800	1000×1000	1200×1000
Daylight	mm	900	1000	1200	1500	1600	1800
Main Stroke	mm	700	800	1000	1200	1300	1500
Min.mold	mm	200	200	200	300	300	300
Hearter capacity	KW	12	18.5	20.6	25.2	32.4	36
Motor capacity	KW	7.5	11.5	11.5	15		22.5
Machine size[L×W×H]	mm	4300×1500 ×3000	4500×1700 ×3200	4700×1900 ×3400	5200×2100 ×3700	5700×2100 ×3900	6200×2300 ×4200
Machine weight	ton	7	8	10	12	14	15

※ Can be changeable without any notice.
