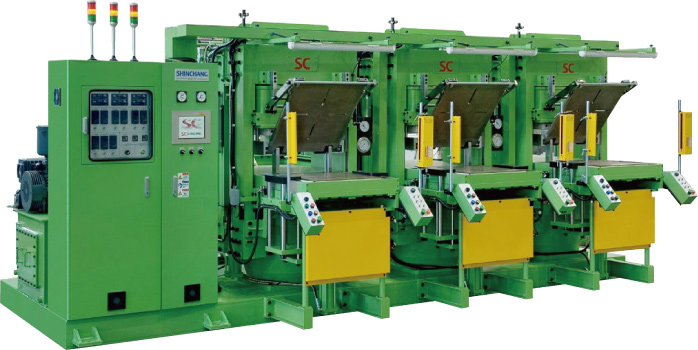

Home Machinery part RUBBER COMPRESSION MOLDING M/C for O-RING

This dedicated molding machine for two-stage mold such as an O-ring, etc. has a structure which is rotated and separated, when the slide is moved forward, and the production capacity is excellent
Be capable of reducing setting times of operating conditions of same items by storaging operating conditions (20set) by touch screen monitor and prompt remedy to the breakdowns and operation is possible by preserving messages(195items) for the operations and defects.
Efficient production management is possible by computer communication because of the receiving data at the computer room with real time (option)

Item		SC-V1130O	SC-V1540O	SC-V1545O	SC-V2050O	SC-V2550O	SC-V3060O	SC-V4070O
Clamping force	ton	110	150	150	200	250	300	400
Heating plate size	mm	300×360	400×460	450×450	500×500	500×560	600×600	700×700
Daylight	mm	300	300	300	330	330	330	330
Mold thickness	mm	20~150	20~180	20~180	20~200	20~200	20~300	20~300
Max.pressure	kgf/㎠	210
Operating pressure	kgf/㎠	200	200	200	190	190	190	190
Low-pressured pump cap	ℓ/min	26	26	26	26	26	26	26
High-pressured pump cap	ℓ/min	12	12	12	19	19	23	25
Motor capacity<	HP×P	10×6	10×6	10×6	10×6	10×6	15×6	15×6
Heater capacity	kw	3.9	6.6	7.2	7.8	10.8	13.8	19
Press-uni	unit	3.1×1, 4×1	2×1, 3×1, 4×1	2×1, 3×1	2×1, 3×1	2×1, 3×1	2×1, 3×1	1×1, 2×1
